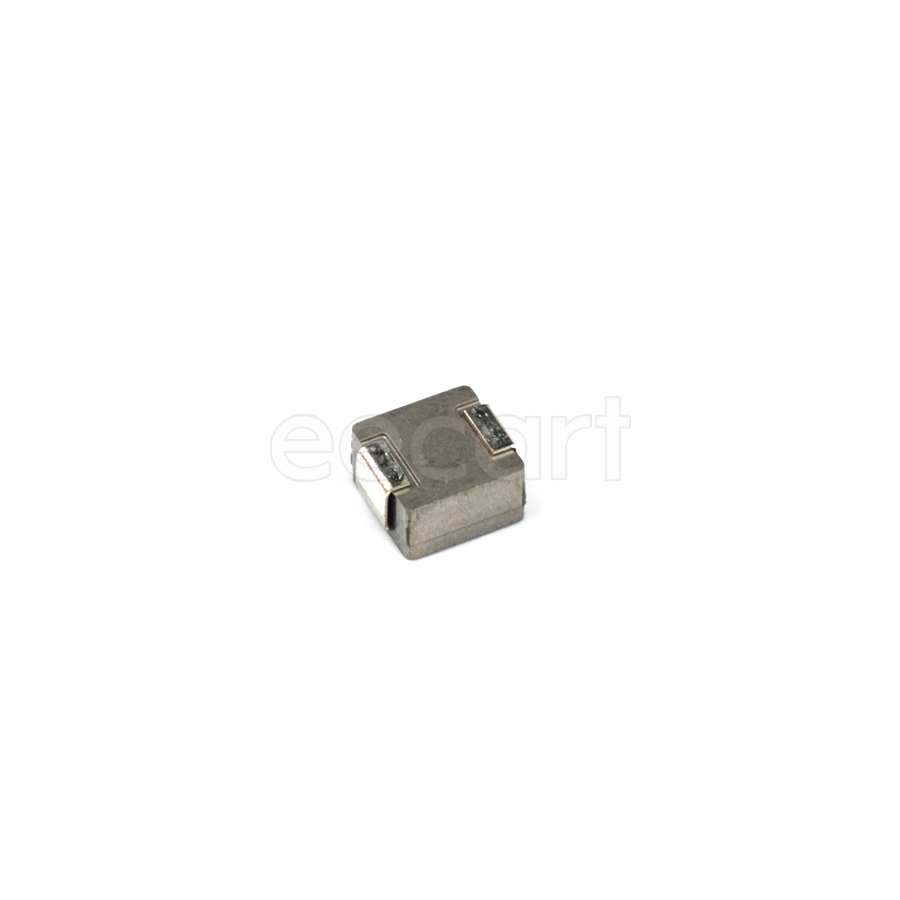

74437368100
Manufacturer:
Wurth Electronics
Mfr.Part #:
74437368100
Datasheet:
Description:
Fixed Inductors 11.00mmL×10.00mmW×4.00mmH SMD/SMT 10 µH 20 % 5.2 A 30 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.99 mm |
| Length | 11 mm |
| Width | 10 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 3.8 mm |
| Packaging | Reel |
| Depth | 10 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Frequency | 12 MHz |
| Self Resonant Frequency | 12 MHz |
| Current Rating | 5.2 A |
| DC Resistance (DCR) | 30 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Composite, Ferrite |
| RMS Current (Irms) | 5.2 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.2 A |
| Series Resistance | 30 mΩ |
| Saturation Current | 12.5 A |
| Type | Wirewound |
Stock: 1213
Distributors
pcbx
pcbxUnit Price$1.60214
Ext.Price$1.60214
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60214 | $1.60214 |
| 10 | $1.57050 | $15.70500 |
| 25 | $1.50992 | $37.74800 |
| 50 | $1.45167 | $72.58350 |
| 100 | $1.32685 | $132.68500 |
| 300 | $1.23290 | $369.87000 |
| 500 | $1.14560 | $572.80000 |
